Code: SKU6405
Complete System Price: $2,696.42

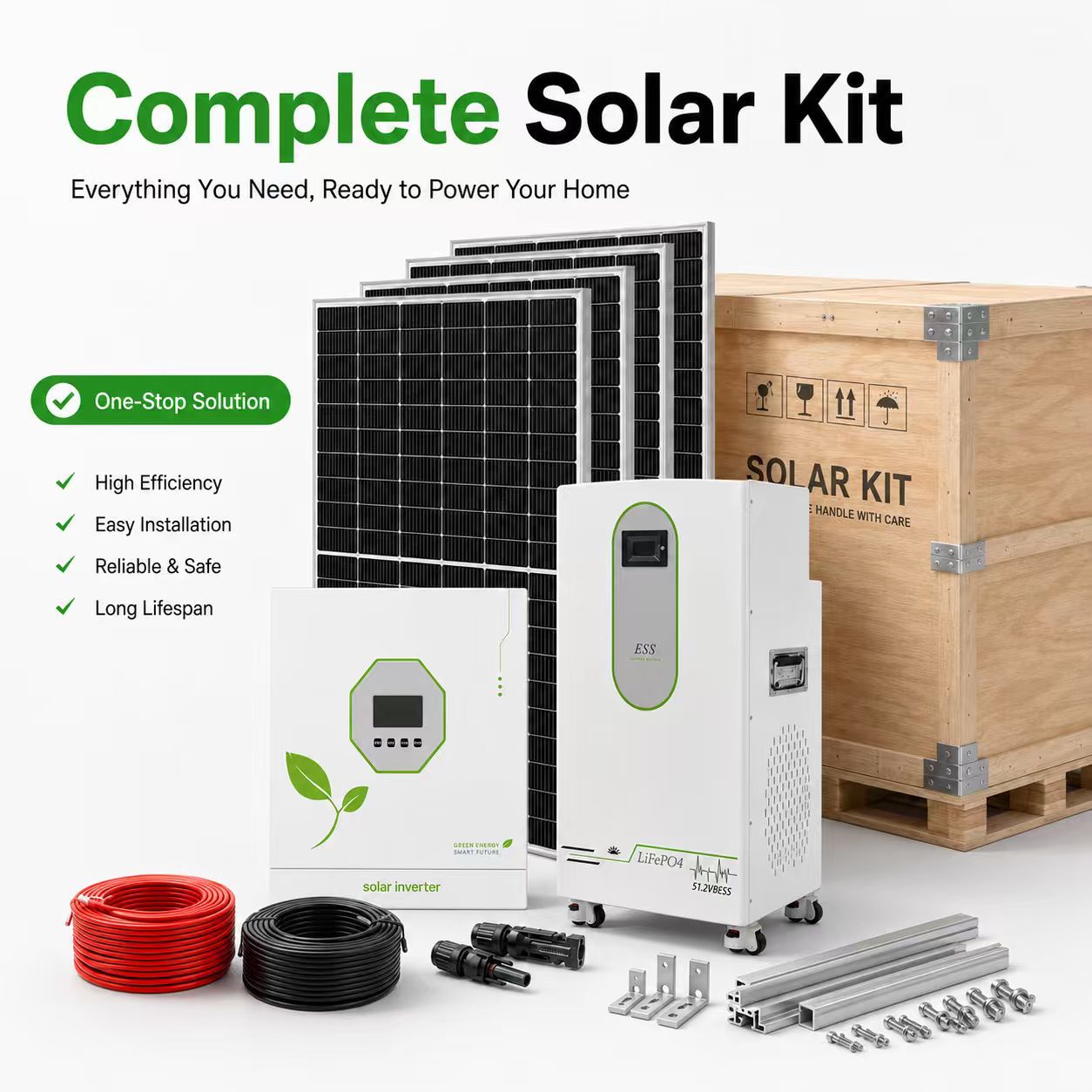

5.2 kW Solar Power System with 11.8 kWh Lithium Battery
A complete home solar power system combining solar panels, a lithium battery, a hybrid solar inverter, and remote monitoring via Wi-Fi.
Package Includes:
- 8 LONGi solar panels, 650 W each, with a total solar capacity of 5.2 kW.
- Panel model: LR8-66HYD-650M.
- 144 cells per panel.
- Panel efficiency: 23.3%.
- Operating voltage: 40.98 V; operating current: 15.86 A.
- Open-circuit voltage: 49.72 V; short-circuit current: 16.54 A.
- LiFePO4 lithium battery with 11.8 kWh capacity, 51.2 V, 230 Ah.
- The battery is equipped with a JK BMS and a QR code for identification and monitoring.
- 6.5 kW hybrid solar inverter, 220 V output, 29.55 A output current.
- The inverter supports remote monitoring via Wi-Fi.
- MPPT voltage range: 60–450 V; maximum PV input voltage: 500 V.
- Supports battery charging from the utility grid.
- Complete mounting structure for 8 panels, available as a single-row or two-row configuration upon request, including rails, posts, supports, clamps, bolts, and installation accessories.
- All required wiring and connection cables are included in the package.
Warranty:
- Battery warranty: 5 years.
- Inverter warranty: 2 years.
Packaging and Shipping Data:
- Total package volume: 1.51 m³.
- Total weight: 540 kg.
