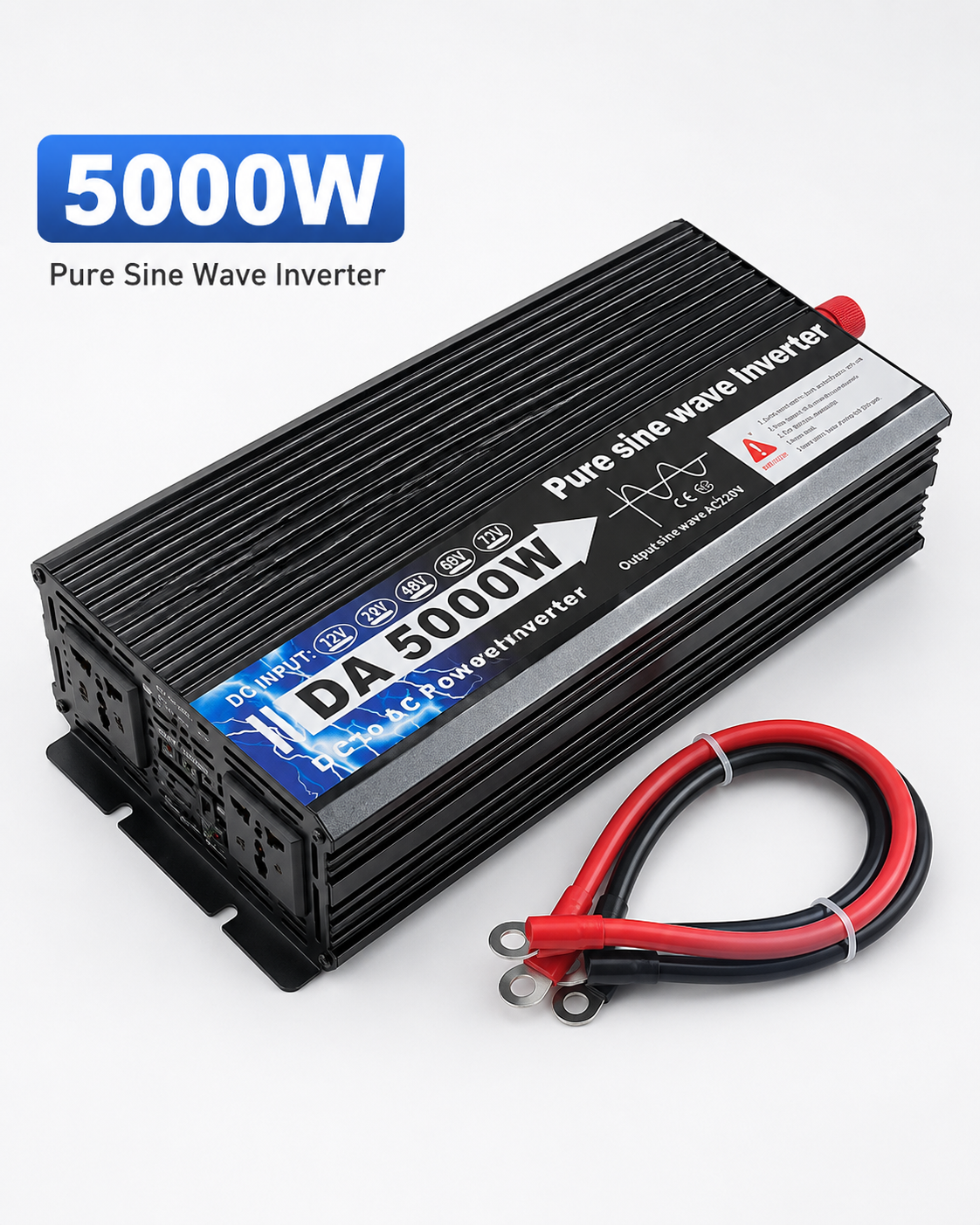

Pure Sine Wave Inverter 5000W – FY-NB-5000 is a pure sine wave DC-to-AC inverter for renewable-energy systems, including compatible solar-energy and wind-power installations.
Technical Specifications
- Model: FY-NB-5000
- Rated output power: 5000Watts continuous
- Surge power: 5200 watts
- DC input / battery options: 12V, ( 10.5 ~16.2V )
24V, ( 20 ~32 V )
48V, ( 40 ~62 V )
60V, ( 50 ~77.5 V )
72V, (60 ~ 93 V) - Transformer type: Transformer
- AC output: 220V~240V AC
- Output frequency: 50HZ , 60HZ
- Display: Digital readout
- Output waveform: Pure Sine Wave
- Maximum efficiency: Approximately 90%
- AC outlet: Universal socket
- Operating temperature: -10 to +40°C
- Dimensions (L x W x H): 289mm*111mm*58.8mm
- Weight: 1.17KG
- Outer shell: Aluminum-alloy heat-dissipation body
- Packing: Color box
- Cooling: High-speed cooling fan
Protection Functions
- Undervoltage warning
- Undervoltage protection
- Short-circuit protection
- Overheat protection
- Overvoltage protection
YASERBABA order pack: 1 piece.
Minimum order: 1 piece. Orders may be placed in multiples of 1 piece.
