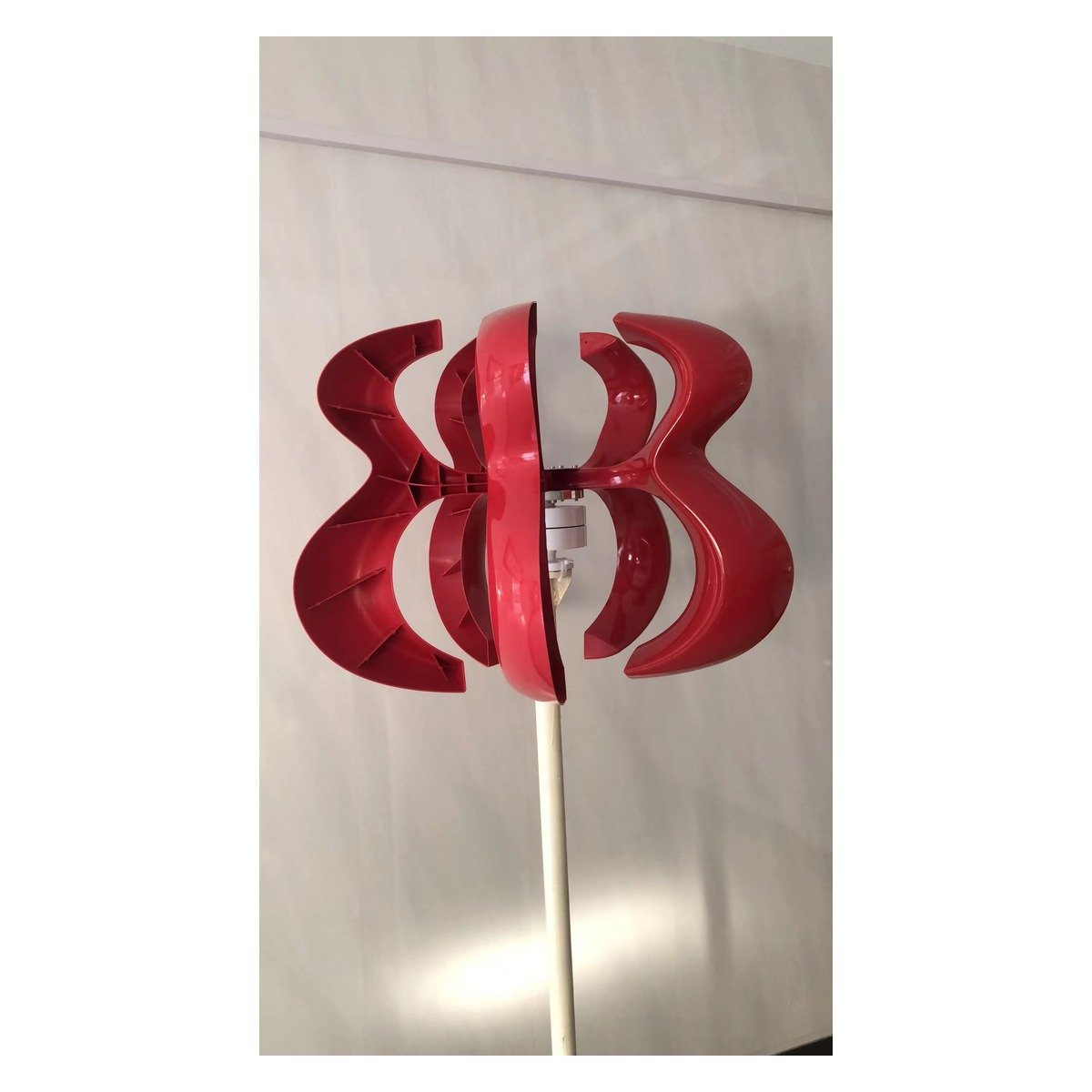

The 1600W gourd-shaped vertical axis wind turbine is a compact five-blade renewable-energy generator for 12V systems. It uses a vertical-axis structure designed to face the wind automatically.
Key Features
- Compact vertical-axis design
- Five-blade rotor
- Automatic wind-direction adjustment
- Electromagnetic braking
Technical Specifications
- Rated power: 1600W
- Maximum power: 1620W
- Rated voltage: 12V
- Starting wind speed: 2 m/s
- Rated wind speed: 11 m/s
- Safe wind speed: 45 m/s
- Wind wheel diameter: 0.9 m
- Number of blades: 5
- Blade material: nylon fiber
- Generator: three-phase AC permanent-magnet generator / magnetic-levitation generator
- Braking mode: electromagnetic
- Wind direction adjustment: automatic windward
- Operating temperature: -40°C to 80°C
- Net turbine weight: 16.5 kg
Packaging & Shipping Data
- Default carton packaging
- Carton dimensions: 61 × 44 × 30 cm
- Carton volume: 0.08052 CBM per unit
Ordering Information
- Stock: 5,000 units
- Minimum order: 1 unit
- Quantity step: 1 unit
